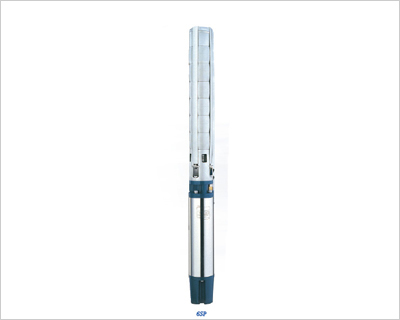

current location: -> Water Pumps -> Deep well Pump -> 6SP

Applications
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +50 ℃
Maximum sand content:0.3%
Maximum immersion depth: 100m.
Minimum well diameter:6″
Motor
Rewindable motor
Full obturated screen motor
Three-phase: 380V-415V/50Hz
Equip with special start-up control box
Internal diameter of outlet
2-1/2″3″
Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.
Warranty:2 year
(according to our general sales conditions).


MODEL P2 DELIVERY             n≈2850min-1
1～220V/240V KW HP Q(m3/h) 0 3 6 9 12 15 18 21 24 27 30 36
Q(l/min) 0 50 100 150 200 250 300 350 400 450 500 600
6SP17-9A 5.5 7.5 H(mm) 97 96 94 90 85 76 63 45
6SP17-12A 7.5 10 130 128 125 120 113 101 84 60
6SP17-15A 9.2 12.5 162 160 157 150 141 127 105 75
6SP17-18A 11 15 195 192 188 180 169 152 126 90
6SP17-22A 13 17.5 238 235 230 221 207 186 154 110
6SP17-26A 15 20 281 278 272 261 245 220 182 130
6SP17-30A 18.5 25 325 320 314 301 282 254 210 150
6SP17-33A 18.5 25 357 353 345 331 311 279 231 165
6SP17-36A 22 30 389 385 376 361 339 304 252 180
6SP17-39A 22 30 422 417 408 391 367 330 273 195
6SP17-44A 26 35 476 470 460 441 414 372 308 220
6SP30-6A 5.5 7.5 69 68 67 65 64 61 59 56 52 48 43 32
6SP30-8A 7.5 10 93 91 89 87 85 81 78 74 69 64 58 42
6SP30-10A 9.2 12.5 115 113 111 109 106 102 98 93 87 80 72 53
6SP30-13A 11 15 149 147 145 142 138 132 127 120 113 104 94 68
6SP30-15A 13 17.5 173 170 167 164 159 153 147 139 130 120 108 79
6SP30-17A 15 20 195 192 189 186 180 173 167 158 147 136 123 89
6SP30-20A 18.5 25 229 226 223 218 212 204 196 185 173 160 145 105
6SP30-23A 22 30 265 260 256 251 244 234 225 213 199 184 166 121
6SP30-25A 22 30 288 283 279 273 265 254 245 232 216 200 181 131
6SP30-29A 26 35 332 328 323 316 307 295 284 269 251 232 210 152
6SP30-32A 30 40 366 362 357 349 339 326 313 296 277 256 231 168
6SP30-34A 30 40 390 385 379 371 360 346 333 315 294 272 246 179





Components Material
Pump external casing AISI304ss
Delivery casing Cast-Cu ASTM280
Suction lantern Cast-Cu ASTM280
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI316ss
Shaft coupling AISI304ss or AISI316ss
Wear ring AISI304ss
Motor external casing AISI304ss
Top cover Cast-Cu ASTM280 or Cast iron G20 UNI5007
Bottom support AISI304ss
Mechanical seal  Special seal for deep well (carbon -SIC/TC)
Shaft AISI316ss-C1045
Bearing NSK (Japan)
Seal lubricant oil Oil for food machinery and pharmaceutic use
