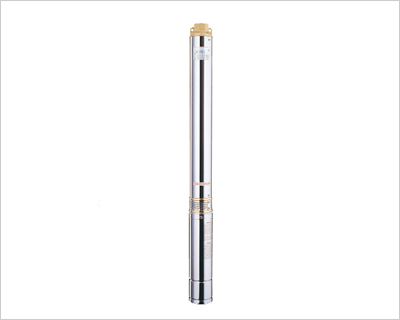

Applications
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +35 ℃
Maximum sand content:0.3%
Maximum immersion depth: 100m.
Minimum well diameter:3.5″
Motor
Rewindable motor
Full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with special start-up control box
Internal diameter of outlet
1-1/4″
|
Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.
Warranty:2 year
(according to our general sales conditions). |
Type single phase
220-240V～Hz50 |
Motor Power |
Delivery=n 2850 min-1 |
| kW |
HP |
m3/h |
0 |
0.5 |
0.75 |
1 |
1.5 |
2 |
| l/min |
0 |
8 |
13 |
17 |
25 |
33 |
| 3.5SDM1-9 |
3.5SD1-9 |
0.37 |
0.5 |
H(mm) |
50 |
49 |
47 |
45 |
38 |
29 |
| 3.5SDM1-12 |
3.5SD1-12 |
0.55 |
0.75 |
67 |
57 |
63 |
60 |
50 |
38 |
| 3.5SDM1-14 |
3.5SD1-14 |
0.55 |
0.75 |
78 |
67 |
74 |
70 |
59 |
45 |
| 3.5SDM1-18 |
3.5SD1-18 |
0.75 |
1 |
101 |
98 |
95 |
90 |
76 |
58 |
| 3.5SDM1-22 |
3.5SD1-22 |
1.1 |
1.5 |
123 |
120 |
116 |
110 |
92 |
70 |
| 3.5SDM1-26 |
3.5SD1-26 |
1.5 |
2 |
143 |
138 |
135 |
130 |
109 |
83 |
| Components |
Material |
| Pump external casing |
AISI304ss |
| Delivery casing |
Cast-Cu ASTM280 |
| Suction lantern |
Cast-Cu ASTM280 |
| Diffuser |
Plastic.PC |
| Impeller |
Plastic.POM |
| Shaft |
AISI316ss |
| Shaft coupling |
AISI304ss or AISI316ss |
| Wear ring |
AISI304ss |
| Motor external casing |
AISI304ss |
| Top cover |
Cast-Cu ASTM280 or Cast iron G20 UNI5007 |
| Bottom support |
AISI304ss |
| Mechanical seal |
Special seal for deep well (carbon -SIC/TC) |
| Shaft |
AISI316ss-C1045 |
| Bearing |
NSK (Japan) |
| Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
|
