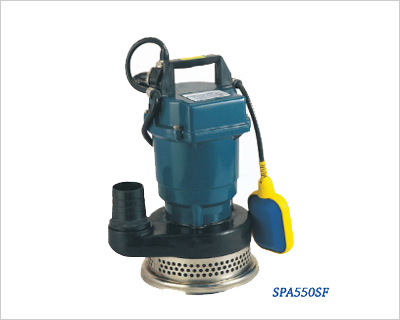

current location: -> Water Pumps -> Submersible Pump -> SPA550SF

CONDITION FO USAGE:
1.The depth for the electrical pump below the water is no more than 5m;
2.The temperature of the water is no higher of 40℃;
3.The PH figure of the water is between 6.5~8.5;
4.The grain diameter of the solids in the water is no bigger than 0.2mm.
FUNCTION AND FEATURE:
Model SPA standing submersible pump is vastly used for farming, breed aquatics, mine enterprise and construction site. It features its compact site, light weight, and convenient use. (Also can be assembled with 3-phase motor). The float switch can automatically control on and off with the change of the liquor level. The protector in the motor can automatically cut off the power when it overheated or overcurrented, thus guarantee the security and reliability of pump’s operation even in the atrocious environment.
PERFORMANCE DATE
TYPE Power Outlet diameter Voltage Max.flow Max.head G.W. L×W×H
(kw) (mm) (V/Hz) (l/min) (m) (kg) (mm)
SPA-180F 0.18 25 220/50 80 6 6.5 225×185×340
SPA-250F 0.25 40,32,25 220/50 130 6.5 7.5 225×185×325
SPA-370F 0.37 40 220/50 216 9 12.5 250×220×415
SPA-400F 0.4 50 220/50 216 9 13.5 250×220×435
SPA-550SF 0.55 50,40 220/50 260 12 13.5 245×220×400
SPA-750F 0.75 50 220/50 333 12 15 270×235×415
