NINGBO NINGSHING KINHIL INDUSTRIAL CO., LTD.

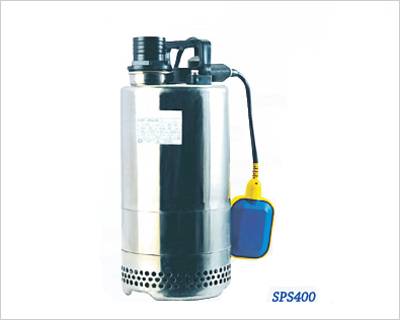

current location: -> Water Pumps -> Submersible Pump -> SPS400

CONDITION FO USAGE:
1.The depth for the electrical pump below the water is no more than 5m;
2.The temperature of the water is no higher of 40℃;
3.The PH figure of the water is between 6.5~8.5;
4.The grain diameter of the solids in the water is no bigger than 0.2mm.

FUNCTION AND FEATURE:
Series model SPS stainless steel casing housing submersible electric pump is vastly used for the drainage of such places as gardening field, mine enterprises, construction site, breed aquatics industry, farming and family. The pump boasts the abilities of complete drainage and convenient use. The housing, sieve and rotor shaft are made of stainless steel and the body of the pump is chrome plated by cast iron, both of them provide the product a nice appearance and high resistance to abrasion and corrosion. The float switch can automatically control on and off with the change of the liquor level. The protector in the motor can automatically cut off the power when it overheated or overcurrented, thus guarantee the security and reliability of pump’s operation even in the atrocious environment.
PERFORMANCE DATE
TYPE Power Outlet diameter Voltage Max.flow Max.head G.W. LxWxH
(kw) (mm) (V/Hz) (l/min) (m) (kg) (mm)
SPS-400 0.4 50 220/50 216 9 17 220×220×440
SPS-700 0.7 50 220/50 380 12 18.5 220×220×440
