current location: -> Water Pumps -> Peripheral Pump -> TPS
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

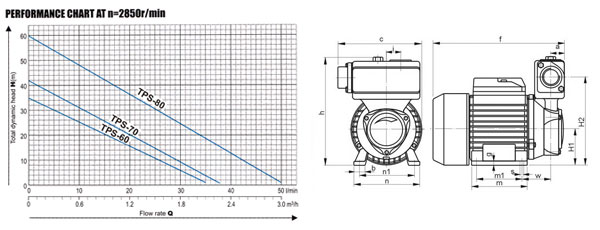

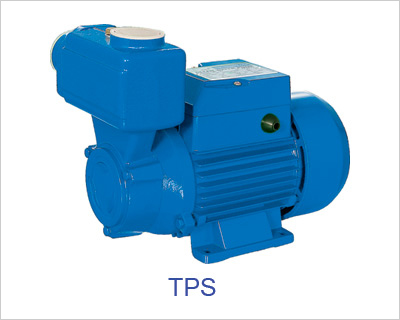

| The pump is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generate high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements. The normal power standard is 220V 50Hz single phase.Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request. 1.Pump body: Cast iron 2.Impeller: Brass 3.Motor: Closed, externally ventilated 4.Insulation class: B (Class F if required) 5.Protection class: IP44 / IP54 6.Duty: Continuously rated 7.Mechanical seal:ф12 or ф16 ceramic steatite/metalized carbon  DIMENSIONS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
