current location: -> Water Pumps -> Peripheral Pump -> PM-KF
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

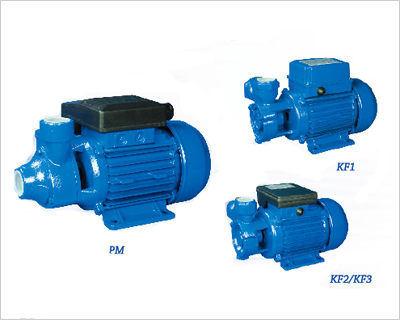

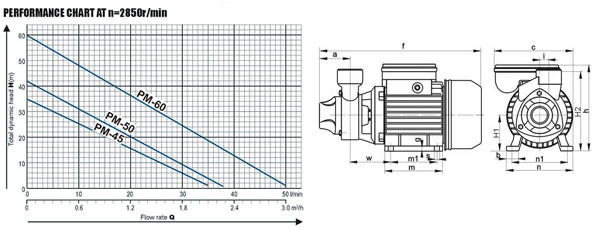

| PM type peripheral pump forms a complete set with the motor on which it is mounted together. The self-srcking water pump is well equipped with the compact mechanism and installation is very easy and has light weight and covers small areas and consumes little electricity better for domestic appliance. It has high quality mechanica to seal up against the leakage. The normal power standard is 220V 50Hz single phase.Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request 1.Pump body: Cast iron 2.Impeller: Brass 3.Motor: Closed, externally ventilated 4.Insulation class: B (Class F if required) 5.Protection class: IP44 / IP54 6.Duty: Continuously rated 7.Mechanical seal:ф12 ceramic steatite/metalized carbon  DIMENSIONS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
