current location: -> Water Pumps -> Centrfugal Pump -> CPM

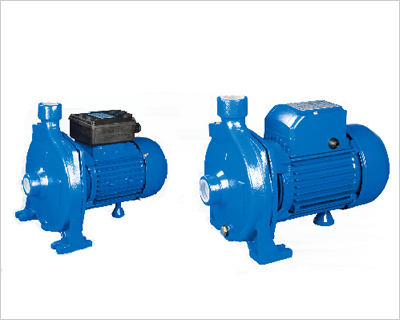

The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.

The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request.

1.Pump body: Cast iron
2.Impeller: Brass (noryl if required)
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ12, Φ14, Φ16 ceramic steatite/metalized carbon

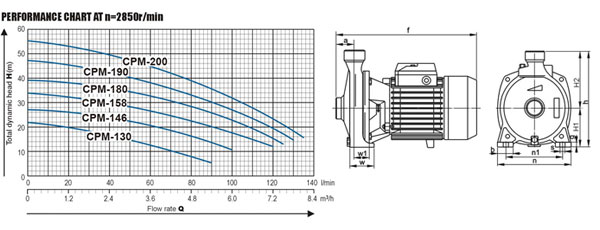

DIMENSIONS
TYPE DIMENSIONS(mm)
a f h H1 H2 n n1 w w1 b g s
CPM-130 43 264 215 90 125 165 135 52 41 32 9 10
CPM-146 44 298 226 94 132 174 144 58 43 33 10 10
CPM-158 44 298 226 94 132 174 144 58 43 33 10 10
CPM-180/T 51 340 290 115 175 230 200 80 50 40 10 11
CPM-190/T 51 340 290 115 175 230 200 80 50 40 10 11
CPM-200/T 51 340 290 115 175 230 200 80 50 40 10 11
PERFORMANCE DATA
TYPE Power Ampere R.P.M Q.Max H.Max S.Head Pipe Dia L×W×H N.W
HP kW 1～220V 3～380V (l/min) (m) (m) (mm) (kg)
CPM-130 0.5 0.37 3 – 2850 90 22 9 1"×1" 310×170×230 9.5
CPM-146 0.75 0.55 3.6 – 100 27 340×175×235 12.6
CPM-158 1 0.75 5 – 120 34 340×210×250 14.7
CPM-180/T 1.5 1.1 7.5 2.7 125 39 380×250×320 23
CPM-190/T 2 1.5 9.6 3.5 130 47 425×250×330 26
CPM-200/T 3 2.2 13.5 5 135 55 27
