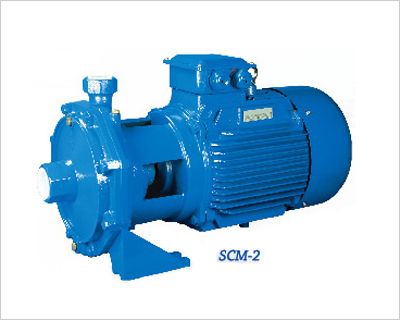

The SCM2 series are with two back to back impellers, it is use for high head values but if hard to reach with single impeller centrifugal pump. Suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. Particularly be used for increasing the supply pressure, feeding boilers and loading extremely. These pumps should be installed in a covered area, protected against the weather.
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request.
1.Pump body: Cast iron
2.Impeller: Brass
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ16, Φ18, Φ25 ceramic steatite/metalized carbon

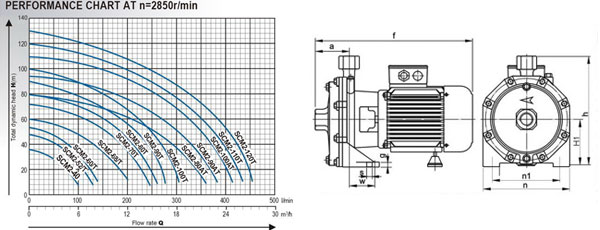

DIMENSIONS
| TYPE |
DIMENSIONS(mm) |
| a |
f |
h |
H1 |
w |
n |
n1 |
g |
s |
| SCM2-40 |
80 |
350 |
235 |
100 |
68 |
– |
138 |
10 |
10 |
| SCM2-52/T |
84 |
393 |
264 |
116 |
65 |
211 |
165 |
11 |
10 |
| SCM2-60/T |
84 |
393 |
264 |
116 |
65 |
211 |
165 |
11 |
10 |
| SCM2-68/T |
95 |
420 |
285 |
125 |
80 |
230 |
185 |
12 |
12 |
| SCM2-70T |
105 |
525 |
315 |
140 |
95 |
258 |
208 |
12 |
15 |
| SCM2-80T |
105 |
525 |
315 |
140 |
95 |
258 |
208 |
12 |
15 |
| SCM2-90T |
112 |
600 |
336 |
152 |
100 |
270 |
216 |
14 |
15 |
| SCM2-100T |
105 |
590 |
336 |
152 |
100 |
270 |
216 |
14 |
15 |
| SCM2-80AT |
105 |
590 |
336 |
152 |
100 |
270 |
216 |
14 |
15 |
| SCM2-90AT |
112 |
590 |
336 |
152 |
100 |
270 |
216 |
14 |
15 |
| SCM2-100AT |
112 |
625 |
336 |
152 |
100 |
270 |
224 |
14 |
15 |
| SCM2-110T |
129 |
740 |
390 |
182 |
133 |
314 |
278 |
15 |
18 |
| SCM2-120T |
129 |
740 |
390 |
182 |
133 |
314 |
278 |
15 |
18 |
PERFORMANCE DATA
| TYPE |
Power |
Ampere |
R.P.M |
Q.Max |
H.Max |
S.Head |
Pipe Dia |
L×W×H |
N.W |
| HP |
kW |
1～220V |
3～380V |
(l/min) |
(m) |
(m) |
(mm) |
(kg) |
| SCM2-40 |
1 |
0.75 |
5 |
1.8 |
2850 |
100 |
35 |
9 |
1"×1" |
380×210×240 |
18.8 |
| SCM2-52/T |
1.5 |
1.1 |
7.5 |
2.7 |
130 |
48 |
1-1/4"×1" |
415×225×320 |
23.5 |
| SCM2-60/T |
2 |
1.5 |
9.6 |
3.5 |
140 |
52 |
24.5 |
| SCM2-68/T |
3 |
2.2 |
13.5 |
5 |
200 |
60 |
1-1/2"×1-1/4" |
480×290×350 |
31.0 |
| SCM2-70T |
4 |
3 |
– |
7.2 |
240 |
70 |
39.0 |
| SCM2-80T |
5.5 |
4 |
– |
9.3 |
260 |
84 |
42.5 |
| SCM2-90T |
7.5 |
5.5 |
– |
14.1 |
280 |
90 |
2"×1-1/4" |
62.0 |
| SCM2-100T |
10 |
7.5 |
– |
15.0 |
300 |
105 |
570×290×360 |
62.0 |
| SCM2-80AT |
10 |
7.5 |
– |
15.0 |
360 |
80 |
68.0 |
| SCM2-90AT |
12.5 |
9 |
– |
18.0 |
380 |
95 |
82.0 |
| SCM2-100AT |
15 |
11 |
– |
21.8 |
420 |
110 |
85.0 |
| SCM2-110T |
17.5 |
13 |
– |
26.3 |
440 |
120 |
2"×1-1/2" |
600×320×400 |
110.0 |
| SCM2-120T |
20 |
15 |
– |
30.5 |
460 |
130 |
120.0 |
|
