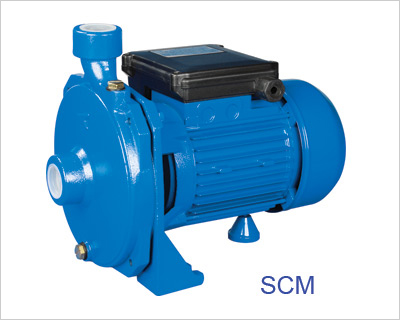

The pump is micro centrifugal pumps suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.

The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request.

1.Pump body: Cast iron
2.Impeller: Brass (noryl, Aluminum if required)
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ12, Φ14 ceramic steatite/metalized carbon DIMENSIONS

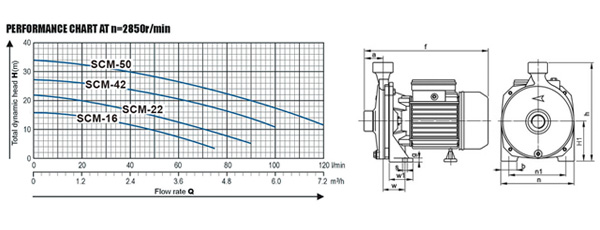

DIMENSIONS
TYPE DIMENSIONS(mm)
a f h H1 c w w1 n n1 g s
SCM-16 45 280 200 85 158 45 40 110 40 9 10
SCM-22 45 280 200 85 158 45 40 110 40 9 10
SCM-42 45 297 240 97 182 53 55 142 40 9 11
SCM-50/T 45 297 240 97 182 53 55 142 40 9 11
PERFORMANCE DATA
TYPE Power Ampere R.P.M Q.Max H.Max S.Head Pipe Dia L×W×H N.W
HP kW 1～220V 3～380V (l/min) (m) (m) (mm) (kg)
SCM-16 0.45 0.33 2.7 – 2850 75 16 9 1"×1" 310×160×225 8.2
SCM-22 0.5 0.37 3 – 90 22 310×165×225 9
SCM-42 0.75 0.55 4 – 100 27 10.5
SCM-50/T 1 0.75 5 1.8 120 34 310×225×275 14.8
