current location: -> Water Pumps -> Self-priming Jet Pump -> JET-DP,JDW

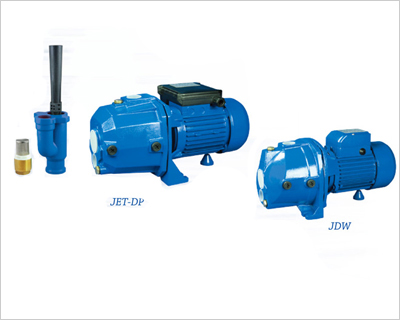

JETDP pumps comprises a ejector unit and a centrifugal pump. The most remarkable character is it can be used to supply clean water from a relatively deep well. It is also suitable for chemically non-aggressive fluid. To ensure the adequate counterpressure, it is always installed a foot valve with a filter on the suction opening.

The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V, 240V, 127V, 110V, 115V/60Hz models are available on request.

1.Pump body: Cast iron
2.Impeller: Brass impeller
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ12 ceramic steatite/metalized carbon PERFORMANCE DATA

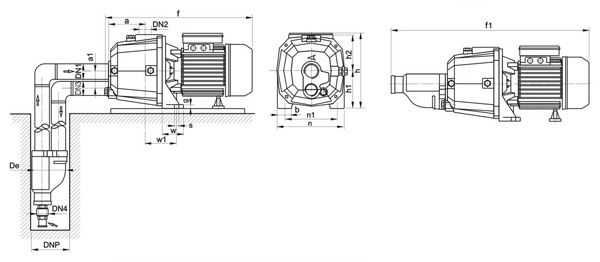

DIMENSIONS

TYPE DIMENSIONS(mm)
DNP DN1 DN2 DN3 De a  a1 f f1 h h1 h2 n n1 w w1 b g s
JETDP-225 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11
JETDP-370 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11
JETDP-505 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11
PERFORMANCE DATA
TYPE Power Ampere R.P.M Ejector Well Capacity(l/min) Packing Size Weight
Depth At discharge head
HP kW 1～220V Type (m) 10m 15m 25m 35m L×W×H(mm) NW(kg)
JETDP-225 0.5 0.37 3 2850 E20 10 50 34 12 – 420×300×230 16
JDW-225 E20 15 34 20 5 –
　 E30 20 17 13 7 –
JETDP-370 0.75 0.55 3.6 E20 10 – 42 18 15 420×300×230 17.4
JDW-370 E20 15 – 25 16 10
　 E30 20 – 20 10 7
JETDP-505 1 0.75 4.8 E20 15 – 38 24 28 420×300×230 18.2
JDW-505 E30 20 – 30 17 15
　 E30 30 – 21 12 10
