current location: -> Water Pumps -> Self-priming Jet Pump -> JET-L,JET-B

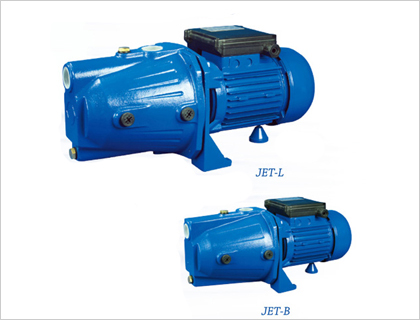

The JET-L & JET-B series pumps are with an automatic ejector system, find many uses in domestic applications, gardens and supply water from wells, and so on. These pumps are suitable for clean water and chemically non-aggressive liquid. They are very reliable, safe and simple to use.

The normal power standard is 220V 50Hz single phase. Three phase 220/380/50Hz, 220/440V/60Hz, Single phase 230V, 240V, 127V, 110V, 115V/60Hz models are available on request

1.Pump body: Cast iron
2.Impeller: Brass(noryl if required)
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal:ф12 ceramic steatite/metalized carbon
8.Shaft: Stainless steel

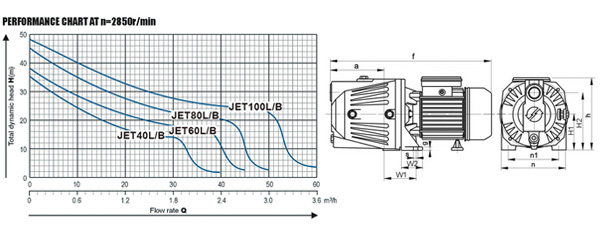

DIMENSIONS
TYPE DIMENSIONS(mm)
a f h H1 H2 W1 W2 n n1 g s
JET-40L/B 143 425 196 98 156 79 55 182 142 9 11
JET-60L/B 143 425 196 98 156 79 55 182 142 9 11
JET-80L/B 143 425 196 98 156 79 55 182 142 9 11
JET-100L/B 143 425 196 98 156 79 55 182 142 9 11
PERFORMANCE DATE
TYPE　 Power Ampere R.P.M Q.Max H.Max S.Head Pipe Dia L×W×H N.W
HP kW 1～220V (l/min) (m) (m) (mm) (kg)
JET-40L/B 0.45 0.33 2.7 2850 40 35 9 1"×1" 460×210×220 12.5
JET-60L/B 0.5 0.37 3 45 38 14.1
JET-80L/B 0.75 0.55 3.6 50 45 15.2
JET-100L/B 1 0.75 4.8 60 48 16
