current location: -> Water Pumps -> Self-priming Jet Pump -> JSP,JSW

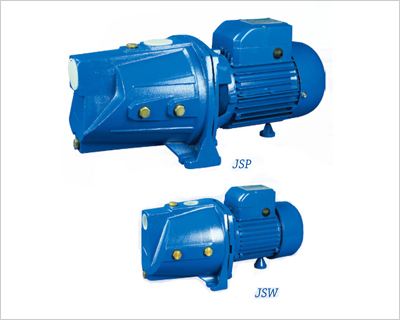

The JSP & JSW series pumps are with an automatic ejector system, find many uses in domestic applications, gardens and supply water from wells, and so on. These pumps are suitable for clean water and chemically non-aggressive liquid. They are very reliable, safe and simple to use.

The normal power standard is 220V 50Hz single phase. Three phase 220/380/50Hz, 220/440V/60Hz, Single phase 230V, 240V, 127V, 110V, 115V/60Hz models are available on request

1.Pump body: Cast iron
2.Impeller: Brass (noryl if required)
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ12, Φ16 ceramic steatite/metalized carbon
8.Shaft: Stainless steel

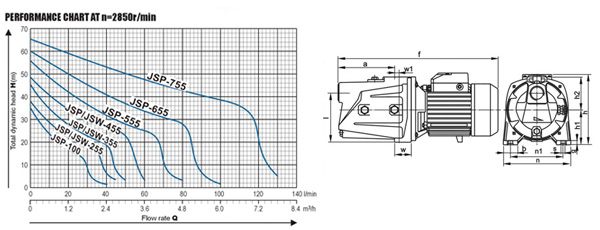

DIMENSIONS
TYPE DIMENSIONS(mm)
a f h H1 H2 i w n n1 w1 b g s
JSP-100 116 361 165 82 78 114 45 158 124 7.5 34 10 10
JSP-255 148 430 206 96 95 153 55 190 150 8 39 13 12
JSP-355 148 430 206 96 95 153 55 190 150 8 39 13 12
JSP-455 148 430 206 96 95 153 55 190 150 8 39 13 12
JSP-555 158 530 235 110 100 164 70 206 165 7.5 41 15 12
JSP-655 158 530 235 110 100 164 70 206 165 7.5 41 15 12
JSP-755 158 530 235 110 100 164 70 206 165 7.5 41 15 12
PERFORMANCE DATE
TYPE Power Ampere R.P.M Q.Max H.Max S.Head Pipe Dia L×W×H N.W
HP kW 1～220V 3～380V (l/min) (m) (m) (mm) (kg)
JSP-100 0.45 0.3 2.7 – 2850 40 35 9 1"×1" 410×170×180 10.2
JSP/JSW-255 0.5 0.37 3 – 45 38 14.0
JSP/JSW-355 0.75 0.55 3.6 – 50 45 460×210×230 15.1
JSP/JSW-455 1 0.75 4.8 – 60 48 16.0
JSP-555 1.5 1.1 7.5 2.7 80 56 1-1/4"×1-1/4" 590×218×258 26
JSP-655 2 1.5 9.6 3.5 100 60 27.5
JSP-755 3 2.2 13.5 5.0 130 65 1-1/2"×1-1/2" 590×228×258 29
