NINGBO NINGSHING KINHIL INDUSTRIAL CO., LTD.

current location: -> Water Pumps -> Garden Pump -> JET-S

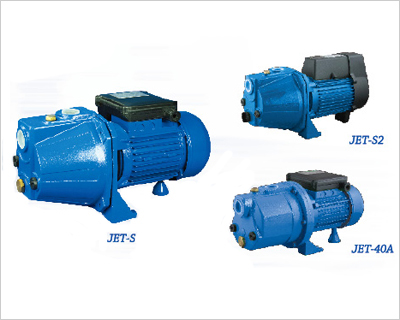

The JET-S series pumps are with an automatic ejector system, find many uses in domestic applications, gardens and supply water from wells, and so on.These pumps are suitable for clean water and chemically non-aggressive liquid. They are very reliable, safe and simple to use.

The normal power standard is 220V 50Hz single phase. Three phase 220/380/50Hz, 220/440V/60Hz, Single phase 230V, 240V, 127V, 110V, 115V/60Hz models are available on request

1.Pump body: Cast iron
2.Impeller: Brass (noryl if required)
3.Motor: Closed, externally ventilated
4.Insulation class: B (Class F if required)
5.Protection class: IP44 / IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ 12 ceramic steatite/metalized, carbon
8.Shaft: Stainless steel
9.Thermal Protector

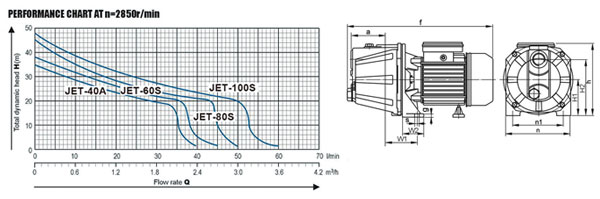

DIMENSIONS
TYPE　 DIMENSIONS(mm)
a f h H1 H2 W1 W2 n n1 g s
JET-40A 94 366 178 90 130 89 60 142 96 7 8
JET-60S 90 380 196 98 152 79 55 182 142 9 11
JET-80S 90 380 196 98 152 79 55 182 142 9 11
JET-100S 90 380 196 98 152 79 55 182 142 9 11
PERFORMANCE DATE
TYPE　 Power　 Ampere R.P.M Q.Max H.Max S.Head Pipe Dia　 L×W×H N.W
HP kW 1～220V (l/min) (m) (m) (mm) (kg)
JET-40S 0.45 0.33 2.7 2850 40 35 9 1"×1" 410×210×220 10.2
JET-60S 0.4 0.37 3 2850 45 38 9 1"×1" 410×210×220 13.0
JET-80S 0.75 0.55 3.6 2850 50 45 9 1"×1" 410×210×220 13.5
JET-100S 1 0.75 4.8 2850 60 48 9 1"×1" 410×210×220 14.1
JET-40A 0.45 0.33 2.7 2850 43 40 9 1"×1" 410×210×220 11.0
JET-40T 0.5 0.37 3 2850 43 43 9 1"×1" 410×210×220 11.5
