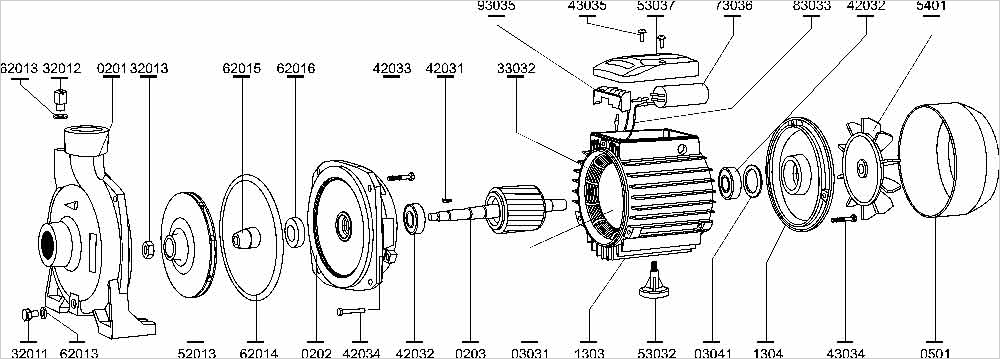

current location: -> Water Pumps -> Structure Chart -> Centrifugal-pump

0201:Pump body 62016:Mechanical Seal 03031:Stator 0501:Fan cover
32011:Coper Screw 0202:Motor front cover 33032:Stator Coil 53037:Terminal Cover
32012:Flit plug Screw 42033:Screw 53032:Motor Foot 93035:Terminal Block
32013:Locking nut 42032:Ball bearing 03041:Spring Washer 73036:Capacitor
52013:Impeller 0203:Motor Rotor 1304:Motor End Cover 83033:Connection wire
62014:”O” Ring 42031:Shaft Key 43034:Tie bolt 43035:Screw
62015:Mechanical Seal 1303:Motor Body 5401:Fan
