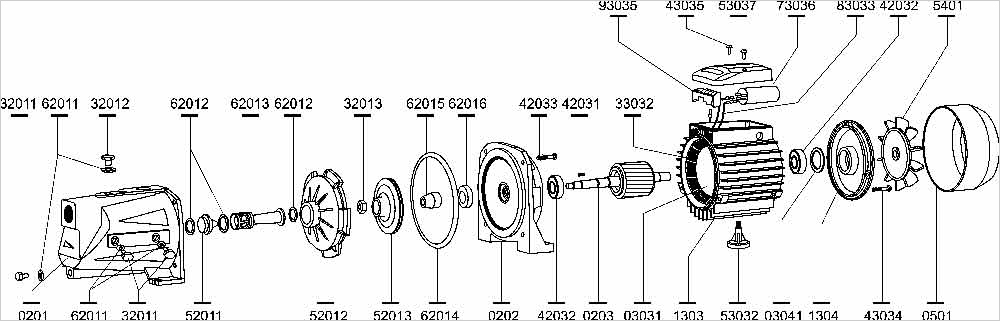

| 0201:Pump body |
52012:Propelling sheave |
42033:Screw |
53032:Motor Foot |
| 32011:Coper Screw |
32013:Locking nut |
42032:Ball bearing |
83033:Connection Wire |
| 32012:Flit plug Screw |
52013:Impeller |
0203:Motor Rotor |
03041:Spring Washer |
| 62011:Seal |
62014:”O” Ring |
42031:Shaft Key |
1304:Motor End Cover |
| 52011:Nozzel |
62015:Mechanical Seal |
1303:Motor Body |
43034:Screw |
| 62012:JET Seal |
62016:Mechanical Seal |
03031:Stator |
5401:Fan |
| 62013:Diffusor |
0202:Motor front cover |
33032:Stator Coil |
0501:Fan cover |
| 53037:Terminal Cover |
93035:Terminal Block |
73036:Capacitor |
43035:Screw |
|
